Description

Please note that it cannot be used with area expansion kits. For the S30 Ultra 33W, due to height limitations, the CAM500 cannot precisely align to the center, so its use is not recommended for that specific model.

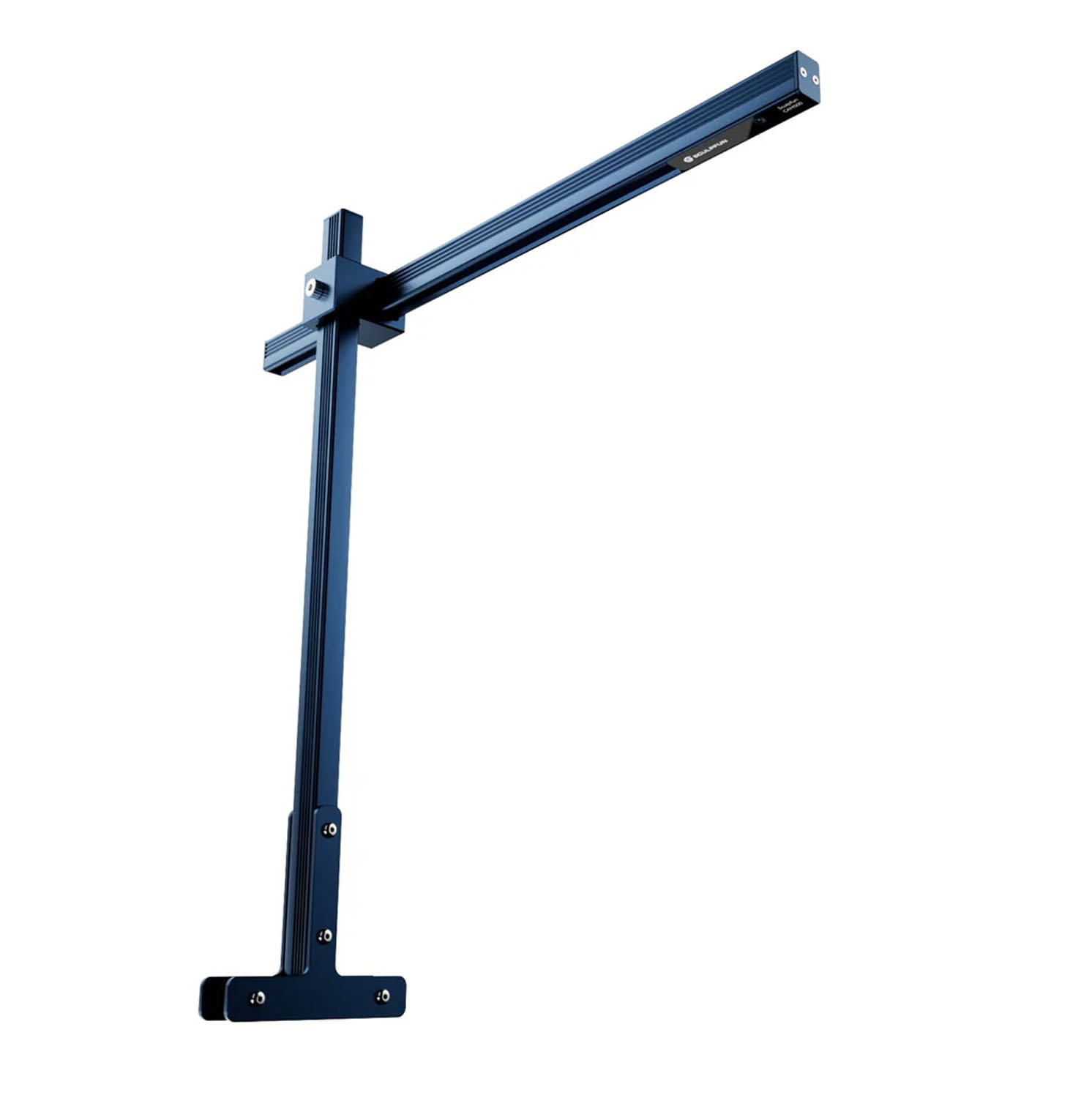

Beyond SCULPFUN, its T-shaped fixation clamp is also suitable for almost all engraving machines featuring a V-slot structure, such as the D1PRO, Falcon2, LM2 PRO S2, 20PRO 20S, 55, JL3, and 3 MAX V2. A U-shaped fixation clamp is also provided for machines with U-shaped beams, ensuring broad adaptability across brands.

Equipped with a true high-definition 5-megapixel sensor, the CAM500 captures exceptionally clear images, enabling more accurate positioning for your engravings. Its perfect integration with LightBurn’s CAM function allows for a positioning deviation of less than 1mm, ensuring your designs land exactly where you intend them.

This precision extends to Engraving Position Controlling, where you can intuitively drag and drop patterns directly onto your material in the LightBurn interface. The laser machine will then engrave the pattern precisely at that visually determined position.

Smart Features for Enhanced Creativity and Efficiency

The CAM500 isn’t just about positioning; it’s a creative powerhouse:

• Image Tracing: Easily identify and extract patterns from object surfaces, automatically converting them into engravable vector files.
• Batch Engraving: Streamline your production by adding multiple objects to your workspace and completing various independent engraving tasks in a single, efficient run.
• HD Video Recording: Capture your engraving process in stunning detail with the 120° wide-angle lens, covering a generous 400mm x 400mm working area.
• Industrial-Grade Performance and Important Notes.

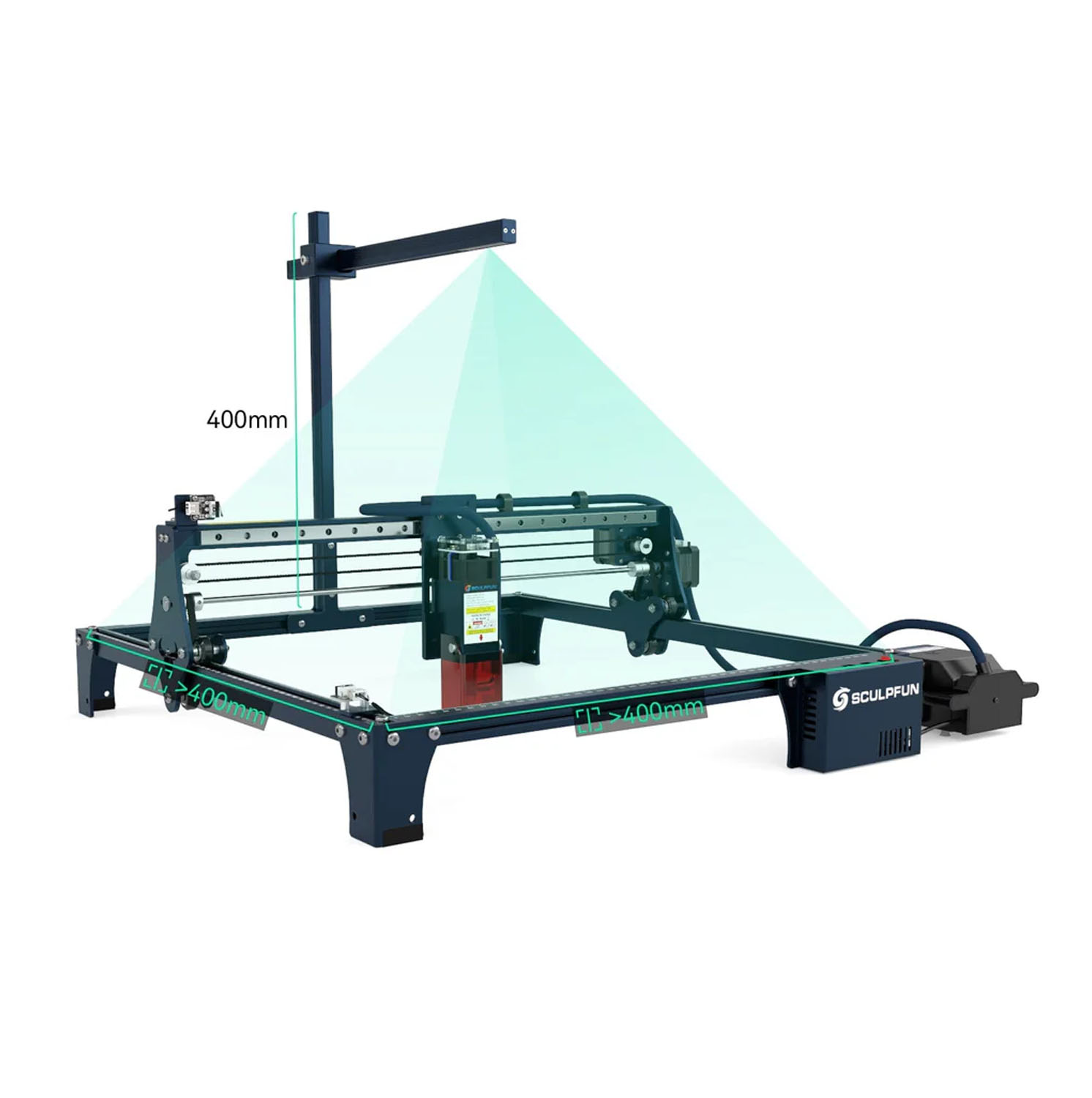

This is an industrial-grade camera specially designed for laser engraving applications, offering real 500W pixels for superior accuracy and clearer identification. Its 120° wide-angle lens provides a large positioning area, effectively covering a 400mm x 400mm working space.

Important Notice: For optimal precision, the recommended height from the camera to the engraving position is 325mm. Within the 400mm x 400mm working area, best results are achieved when objects are placed as close to the camera’s center as possible. Be aware that precision will decrease as engraving objects are moved further from the camera’s central point.
